Description

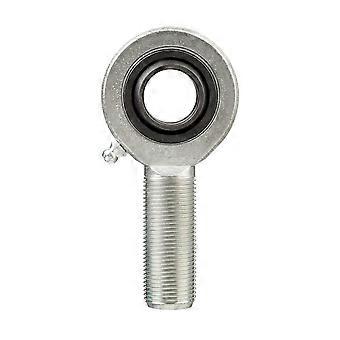

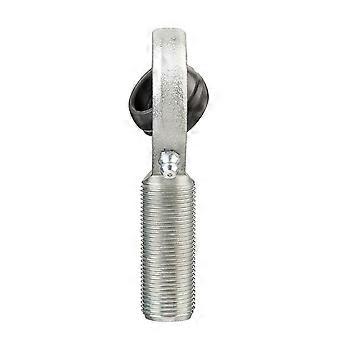

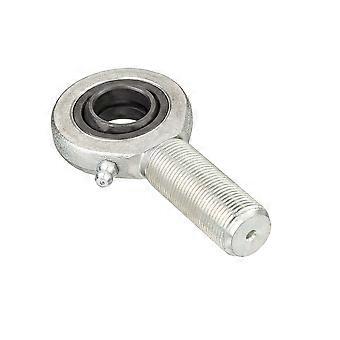

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90-degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.Specifications Lubricant: Regular relubrication grease. Design: Steel/steel; Special series for hydraulic cylinders. Bore diameter d: 20mm. Diameter head d2max: 50mm. Width inner ring B: 20mm. Thread G6H: M 16x1.5. Width head C1max: 19mm. Height shank end face - centre rod end eye h1: 52mm. Angle of tilt : 4. Raceway diameter inner ring dk: 29mm. Housing diameter shank d4max: 26.5mm. Length threat l3min: 23mm. Length (height) housing l4max: 77mm. Distance shank chamfer - centre rod end eye l7min: 21mm. Width shank Nmax: 48mm. Thickness shank base for clamping bolts N1max: 20mm. Chamfer dimension bore r1min: 0.3mm. Size bolt with internal hexagon: M 8. Tightening torque bolt with internal hexagon: 23Nm. Basic dynamic load rating C: 30kN. Basic static load rating C0: 43kN. Specific dynamic load factor K: 100N/mm. Material constant KM: 330.
- Brand: SKF
- Category: Motor Vehicle Engine Parts
- Fruugo ID: 361053338-784957837
- EAN: 5059633169849
