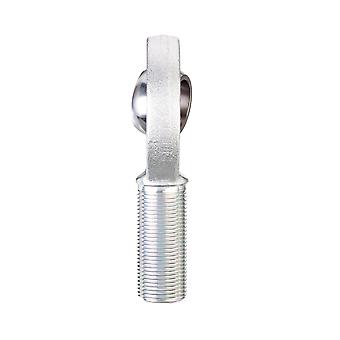

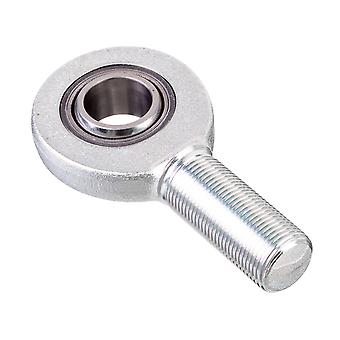

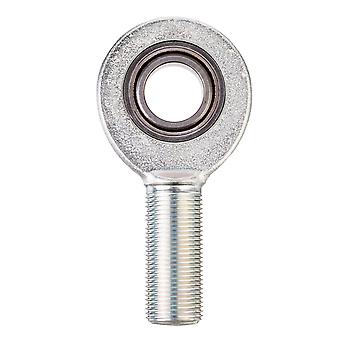

INA GAR45UK2RSA Male Threaded Right Hand Rod End 50mm Bore M45x3mm

Description

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90-degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.Specifications Bore diameter: 50 mm Misalignment angle: 6 ° Shank thread length: 107 mm Rod end type: Male Threaded Shank thread size: M45x3 Thread direction: Right Hand Lubrication type: Maintenance Free/Self-Lubricating Housing material: Zinc-Plated Steel Ball material: Steel Race material: PTFE Fabric Radial static load capacity: 313000 N Operating temperature range: -30 to +130 °C Head diameter: 112 mm Head width: 30 mm Ball width: 35 mm Length to ball center: 185 mm Standards met: ISO-12 240-4

• Brand: INA
• Category: Gaskets & O-Rings

• Fruugo ID: 21129363-46390607
• EAN: 5059633202836
